WS-2307 La Crosse Weather Station

This professional weather station is ideal for the hobbyist to the real weather enthusiast. It takes minutes to set up and comes complete with all mounting hardware. (2x AA batteries required in the transmitter and 3 x AA batteries
in the base station). You can download data to a PC with the included software for advanced weather monitoring or just mount the display on your work desk or kitchen wall for handy weather information and forecasts.
Typical Users:
person with a general interest in temperature and rainfall
used to monitor weather before boating or sporting evens
learning tool for children or educational institutions
used to monitor weather & rainfall for agricultural industry

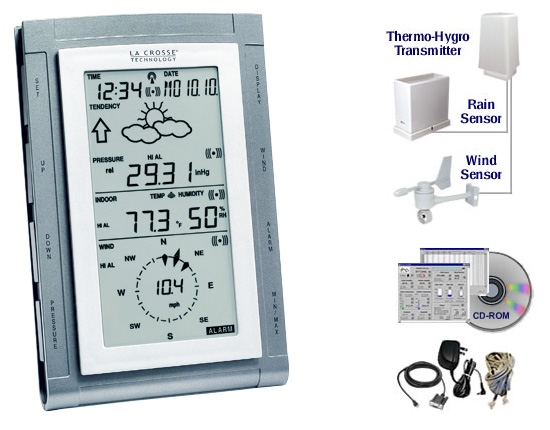

WS-2307 Set Includes the following items:

The WS-2307 Base Receiver has the Following Features:
Large LCD screen display with push button controls
DCF-77 time display with manual setting and alarm
DCF-77 controlled calendar
Automatically adjusts for daylight saving time (ON/OFF function)
Display of extensive weather data, in all cases with programmable alarm functions for certain
weather conditions as well as records of all minimum and maximum values along with time and
date of their recordings
Indoor and outdoor temperature display in degrees Fahrenheit or Celsius
Indoor and outdoor relative humidity displays
Air pressure reading in inHg or hPa, absolute or relative
Detailed display of rainfall data in 1 hour, 24 hours, total since last reset in inch or mm
Wind speed in mph, km/h, m/s, knots or Beaufort
Wind direction display with LCD compass as well as numerical (e.g. 225) and abbreviated
characters (e.g. SW)
Wind chill temperature display
Dew point temperature display
Weather forecast display by weather icons (sunny, cloudy, rainy)
Displays weather forecast history since last change in conditions
Weather tendency indicator
Storm warning alarm
Bright EL back light (Brighter and easier to read than standard LED back light)
COM port for easy connection to your PC via RS232 or USB (cables supplied)
All the weather data from the base receiver station and up to 175 sets of weather history
data (with user adjustable measuring intervals) can be recorded and uploaded to your PC
Screen Dimensions: 125 x 66 mm (largest screen in the WS-2300 series)
Dimensions: 180 x 33 x 120 mm
Power Consumption: Base Receiver Station: 3 x AA batteries or AC Power adaptor (supplied)
Battery life: ip to 1 year in the base station
Outdoor Specifications:
- Temperature Range: -29.9C to + 69.9C in 0.1C.
- Humidity Range: 1% to 99% in 1%
- Wind Speed 0 to 180km/h
- Rainfall Sensor (self emptying) 1 to 999.9mm or 2499.9mm total
- Transmission Range up to 100m
- Measurement Intervals 32 sec if wind >10km/h or 128 sec

Indoor Specifications:
- Temperature Range: -9.9C to + 59.9C in 0.1C.
- Humidity Range: 1% to 99% in 1%
- Air Pressure 300hPa to 1099hPa in 0.1hPa

Outdoor Thermometer-Hygrometer Transmitter -
Measure outdoor temperature and humidity
Gather rain/wind data and transmit to display unit through cable or 433 MHz TX
Supply DC power to wind sensor and rain sensor
Battery operated (2 x AA) or can access power from display unit through included cable
Dimensions: 136 x 71 x 73 mm
Rain Sensor -
- Connected by cable to Outdoor Thermo-Hygro Sensor for rainfall data transmission and power source (No separate power supply needed.)
- Dimensions: 140 x 70 x 137 mm

Wind Sensor -
- Measure wind speed and wind direction (16 directions possible)
- Connected by cable to Outdoor Thermo-Hygro Sensor for wind data transmission and power source (No separate power supply needed.)
- Dimensions: 60 x 197 x 290 mm

HeavyWeather PC Software -
- CD-Rom included that contains PC-autoinstallation software to allow the transfer of collected weather data to PC
New 2300 Series Model
Larger Screen
Bright EL Back Light
New Modern Design
USB & RS232 Cables
